As a mine manager or engineering contractor, you face immense pressure to efficiently extract high-quality blocks. To improve yield and minimize waste, you need equipment that delivers reliable precision. Therefore, it is essential to properly select, deploy, and maintain stone quarry machines to ensure long-term profitability.

This guide will provide you with a systematic overview of the core processes in modern quarrying. Additionally, we will delve into advanced diamond tools and heavy machinery that can significantly optimize daily operations. To improve quarry operational efficiency, fully understanding and mastering your stone quarrying equipment is the critical first step. For comprehensive and efficient quarrying solutions, explore our advanced diamond stone cutting tools.

The Process of Stone Quarrying

Extracting raw blocks from the mountain is a highly systematic operation. To ensure safety and maximize material yield, you must strictly adhere to the operational requirements at each stage. The core processes are outlined below step by step.

Drilling Stage

First, you need to establish precise entry points on the rock face. Drilling is the critical starting point for planning the cutting path or hole pattern. Operators use high-powered down-the-hole drills to bore vertical and horizontal holes. Subsequently, these precisely intersecting holes can be used to insert diamond wire saws or install hydraulic splitters. Precise drilling creates straighter cut surfaces, thereby significantly reducing material waste.

Cutting Stage

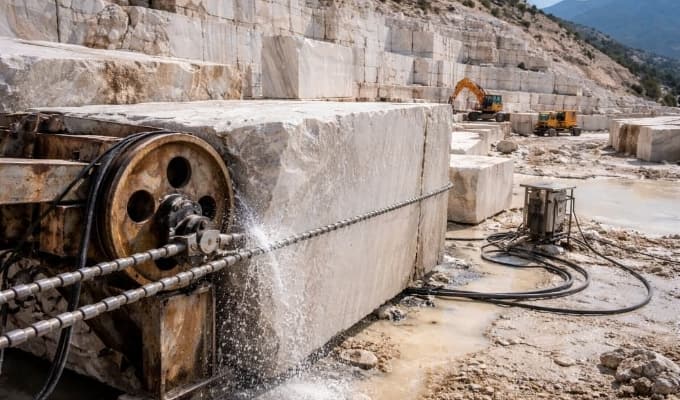

Next comes the main cutting phase. Modern mining operations typically employ wire saw cutting and mechanical cutting methods, replacing traditional explosive blasting. You thread the diamond wire saw through the pre-drilled holes, and the stone mining machines continuously pulls the wire saw to cut through the hard rock, resulting in a smooth, precise cut surface. Additionally, compared to blasting, this method has a lower environmental impact.

Splitting Stage

Once the massive primary block has been separated from the mountain, further segmentation is often required. At this stage, hydraulic splitting equipment is used for controlled separation: hydraulic wedges are inserted into pre-drilled holes, and the splitter applies powerful outward pressure, causing the stone to split cleanly along its natural grain. This avoids the risk of internal micro-cracks associated with secondary blasting.

Lifting and Transportation

Finally, you need to safely remove the blocks from the quarry. Heavy-duty excavators, specialized wheel loaders, and boom cranes can be used for lifting and transport. Proper lifting procedures minimize accidental damage to the blocks. Additionally, proper storage and maintenance of equipment during downtime are equally important, helping to extend the service life of stone quarrying equipment.

Main Types of Stone Quarrying Equipment

Selecting the right machinery directly impacts overall production speed. Below is a classification of stone mining machinery that is indispensable in today’s efficient mining operations.

Diamond Wire Saw Machine

Diamond wire saws are the core equipment of modern quarries. They are equipped with an electric motor-driven high-torque drive wheel that cuts by pulling a steel wire rope embedded with diamond beads at high speed. This equipment offers exceptional flexibility and can be used to cut massive blocks of nearly any size.

Quarry Chain Saw Machine

When mining softer stones such as marble or limestone, boom-mounted chain saws are the ideal choice. Their operating principle is similar to that of a wood chainsaw, but they are equipped with heavy-duty diamond or carbide-tipped blades capable of high-speed dry cutting on vertical rock faces.

Circular Saw Cutting Machine

For primary cutting tasks involving specific standardized dimensions, large circular saws are typically deployed. This type of stone mining machines massive steel blades with diamond-tipped teeth, primarily for vertical cutting after the mining site has been leveled, thereby providing higher cutting efficiency for the extraction of standardized blocks.

Down-the-Hole (DTH) Drills

Down-the-hole (DTH) drills are critical equipment during the drilling phase. They drive pneumatic or hydraulic impact hammers into the bottom of the hole to drill, efficiently creating straight, deep holes. Using this specialized drilling equipment ensures that diamond wire saws pass through the holes smoothly, preventing jamming.

Hydraulic Splitting Machine

This specialized equipment consists of a hydraulic power unit and multiple splitting cylinders. After inserting the steel cylinders into pre-drilled holes, the equipment applies powerful hydraulic pressure to split the rock, causing it to separate in a controlled manner along natural fissures, thereby providing a quiet, low-vibration alternative to secondary blasting.

The Central Role of Diamond Tools in Mining

No matter how expensive the machinery, its performance depends on the cutting tools it is equipped with. Therefore, choosing high-quality stone quarrying  tools directly impacts your daily profits. At Z-LION, we design robust and durable diamond solutions for heavy industrial applications. You can view our complete diamond tool catalog to select the right tools based on the hardness of local rock formations.

Diamond Wire Structure and Working Principle

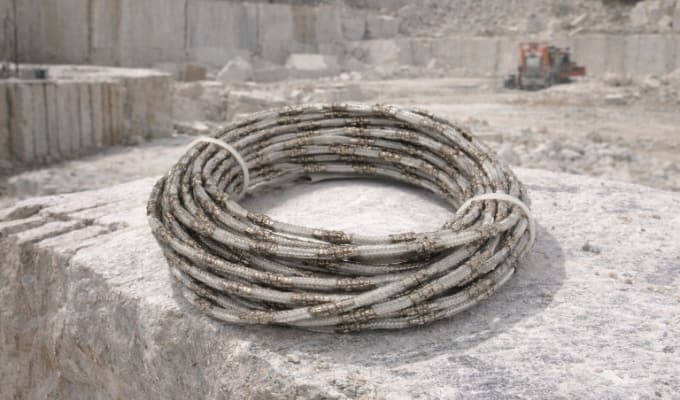

A diamond wire saw consists of a high-strength steel wire and a string of diamond beads. An insulating material (typically injection-molded or resin-bonded) is used to separate and secure the beads. The wire saw cuts through high-speed abrasion: as the equipment pulls the wire saw forward, the exposed diamond crystals continuously grind against the rock.

Step-by-Step Wire Inspection Checklist:

1. Check wire rope tension: Ensure the wire rope shows no signs of wear or broken strands.

2. Measure bead wear: Use a caliper to measure the diameter of the diamond beads daily. If significant uneven wear is detected, adjust or replace the wire saw immediately.

3. Inspect the rubber/plastic coating: Check for micro-cracks in the rubber or plastic coating.

4. Verify joint integrity: Before starting a new cut, ensure that crimped joints are secure.

Diamond Segments for Saw Blades

If you are using a large circular saw, the quality of the diamond cutting tips will directly determine cutting efficiency. We securely weld the tips to the steel core of the saw blade. The tips are made from a precise blend of metal powder and industrial diamond crystals. During cutting, the metal matrix gradually wears away, continuously exposing new, sharp diamonds, thereby maintaining high-efficiency cutting.

Tool Life and Cutting Cost Analysis

You need to continuously calculate the cutting cost per square meter. Tool life primarily depends on the abrasiveness of the stone and equipment parameters. For example, cutting hard granite often wears down diamond beads faster than cutting soft marble. However, high-quality diamond stone cutting tools can significantly reduce downtime, thereby lowering the actual operating cost per square meter.

How Advanced Formulations Enhance Performance

Leading tool manufacturers continuously optimize material formulations. We utilize advanced formulations in our metal-bonded binders to enhance performance. By designing metal binders that match the hardness of the stone, we achieve an optimal diamond exposure rate, resulting in faster cutting speeds and longer tool life.

Why Diamond Wire Saws Are Replacing Traditional Quarrying Methods

The global mining industry is rapidly phasing out dangerous explosive blasting. In contrast, modern mines are rapidly adopting diamond wire saw cutting technology. This shift not only significantly improves operational safety but also often yields more substantial economic returns.

Comparison with Traditional Cutting Methods and Blasting

Traditional blasting destroys high-value stone in an uncontrolled manner; issues such as micro-cracks and irregular block shapes often result in material loss of up to 50%. In contrast, diamond wire saw cutting produces uniform, intact square blocks, significantly improving overall yield and better preserving the structural integrity of the stone.

Long-Term Cost Benefits

You may have concerns about the upfront investment required to purchase new stone quarrying equipment, but the long-term cost advantages are often clear. Each quarrying cycle yields more saleable stone, and the overall costs for subsequent transportation and factory processing are lower for neatly cut square blocks. By significantly reducing waste and eliminating expensive explosives permit fees, your overall cost per unit volume typically decreases significantly.

Final Words

In the highly competitive stone quarrying industry, using the right equipment and high-quality diamond consumables is no longer an option. It is essential for maintaining profitability. From precision drilling to efficient diamond wire saw cutting, every step directly impacts final yield and operating costs. Replacing traditional blasting methods with advanced stone quarrying machines not only enhances operational safety but also delivers long-term cost savings and efficiency gains. If you are seeking a reliable partner to upgrade your mining operations, please contact our sales team immediately for a customized quote and technical consultation. Our experts are ready to provide you with tailored stone mining tool solutions.

FAQs About Stone Quarrying Equipment

What equipment is used in stone quarrying?

Key equipment includes diamond wire saws, down-the-hole (DTH) drills, mining chain saws, and hydraulic splitters. Additionally, heavy-duty excavators and specialized wheel loaders are required for hoisting and transporting quarried stone blocks. Proper maintenance and management of this stone quarrying machines help ensure sustained operational efficiency.

Is diamond wire saw cutting more efficient than blasting?

Yes, diamond wire sawing generally offers higher overall efficiency. Blasting can result in the loss of up to 50% of high-value stone due to uncontrollable fragmentation. In contrast, diamond wire sawing produces blocks with smooth surfaces and precise dimensions, thereby maximizing usable material and significantly enhancing the mine’s overall profitability.

What equipment is required for granite quarrying?

Granite is highly hard and abrasive, requiring specialized equipment with superior durability. Powerful down-the-hole drills should be used for deep-hole operations, paired with high-horsepower diamond wire saws. Additionally, stone cutting tools should utilize robust metal-bonded formulations designed for hard rock.

How to reduce quarrying costs?

The key to reducing costs lies in minimizing raw material waste and avoiding equipment downtime as much as possible. Adopting diamond wire saw cutting techniques as soon as possible can improve block yield. At the same time, strictly enforcing heavy equipment maintenance and investing in diamond tools with lower unit cutting costs and more reliable quality will directly boost long-term profits.
