Diamond wire cutting has become a revolutionary method for cutting stone, with unparalleled efficiency and precision. The technology uses a specialized wire embedded with diamond particles to effectively cut various types of stone, including granite, marble and concrete. In this article, we will explore the principles of diamond wire cutting, its advantages and its wide range of applications.

The Principle of Diamond Wire Cutting

The principle of diamond wire cutting is relatively simple but very effective. Diamond wire works by rubbing against the surface of the stone at high speed. This friction generates a lot of heat, which can melt the stone and create micro cracks, making the material easy to break.

• High-speed operation: The fast movement of the wire, combined with the hardness of the diamond particles, enables it to cut through the hardest materials with minimal effort.

• Controlled cutting: The flexibility of diamond wire enables complex cutting and shaping, making it suitable for both straight and curved contours. This adaptability is particularly beneficial in applications that require precision and detail.

Advantages of Diamond Wire Cutting

Diamond wire cutting offers several advantages over traditional stone cutting methods, making it the preferred choice across a variety of industries:

1. High cutting precision: One of the most significant advantages of diamond wire cutting is the high precision it can achieve. The method allows any angle and contour cut to be made without damaging the surface of the stone. This precision is essential for applications where beauty and detail are critical, such as architectural stonework and decorative features.

2. Fast cutting speed: Diamond wire cutting is known for its fast cutting capabilities. The efficiency of this method means that stone cutting tasks can be completed in a fraction of the time compared to traditional methods. This speed not only increases productivity but also reduces labor costs, making it an economically viable option for contractors and stone fabricators.

3. Wide range of applications: The versatility of diamond wire cutting is another significant advantage. It can be used to cut a variety of stone materials of varying hardness and thickness, including granite, marble and concrete. In addition, diamond wire cutting is very effective on stone materials with complex shapes, allowing for efficient and accurate cutting in challenging applications.

4. Reduce waste and environmental impact: Diamond wire cutting produces less waste material than conventional cutting methods. The cutting precision minimizes material loss during the cutting process. In addition, this method generally requires less cooling water, which reduces the environmental impact.

5. Safety and noise reduction: Diamond wire cutting is generally quieter than traditional cutting methods, which is very useful in urban environments or residential areas. In addition, reduced vibrations and reduced risk of kickback improve operator safety during cutting operations.

How to Use Diamond Wire Cutting?

1. Prepare the surface: Make sure the stone surface is dry and flat. Check for any visible cracks or deformations that may affect the cutting process. A stable and flat surface is essential to achieve a precise cut.

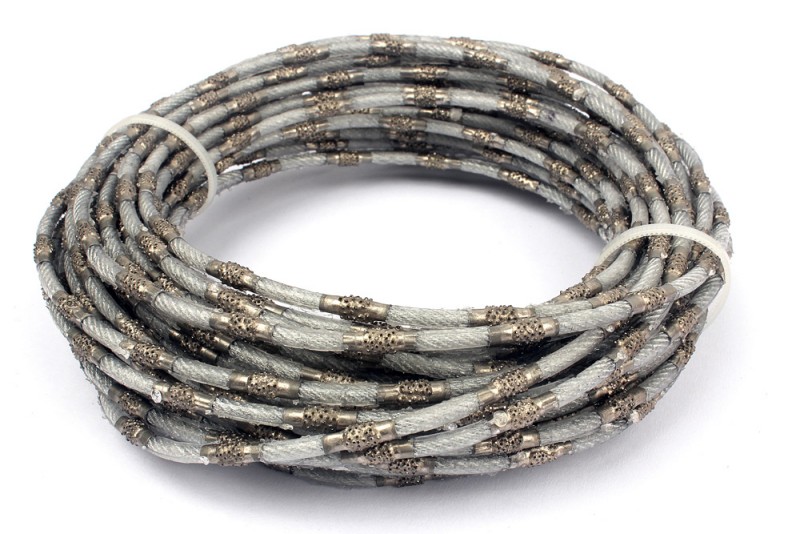

2. Choose the right diamond wire: Choose the appropriate diameter and length of diamond wire according to the specific cutting requirements. The diamond wire should match the type of stone being cut and the required cutting depth. Once selected, pass the diamond wire through the pulley traction system and prepare for cutting.

3. Adjust cutting depth: Control the tension of the cutting wire to adjust the cutting depth. Proper tension is critical for efficient cutting; too much tension can cause the wire to break, while too little tension can result in inefficient cutting.

4. Start the cutting process: Control the cutting speed and angle, turning the cutting line gradually. It is important to maintain a steady speed to ensure a smooth cut. Adjust the angle as needed to achieve the desired shape or contour.

5. Clean up after cutting: After completing your cutting task, clean the stone surface thoroughly. This step is critical to remove any remaining tangents or debris that could cause cracks in the cut line or affect the quality of the cut.

Application Scope of Diamond Wire Cutting

• Cutting various stones: It can effectively cut different types of stones, such as marble, granite, sandstone, bluestone and limestone.

• Construction projects: Diamond wire cutting is often used to cut the exterior walls, floors and decorative parts of buildings, including villas, hotels, apartments, shopping malls and public squares.

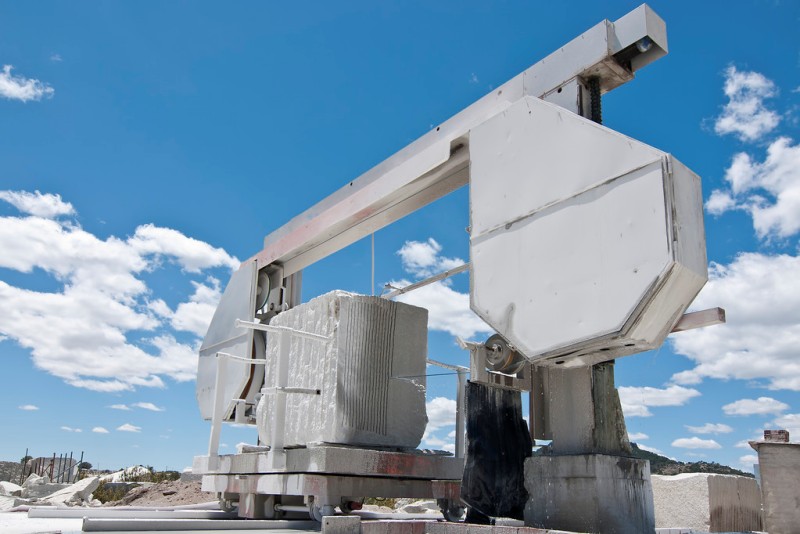

• Quarrying and mining: This method is ideal for extracting large blocks of stone from a quarry, allowing for efficient processing and minimal wastage.

• Refurbishment and restoration: In the construction industry, diamond wire cutting is used to transform existing structures, for example to cut window or door openings in reinforced concrete.

In Conclusion

Diamond wire cutting is an advanced technology that provides precision and efficiency in stone cutting applications. By following the steps outlined and ensuring proper preparation and maintenance, operators can achieve high-quality results while minimizing waste and damage to the material. Its versatility makes it a valuable tool in a variety of industries, from construction to quarrying, enabling the efficient processing of a wide range of stone materials.
